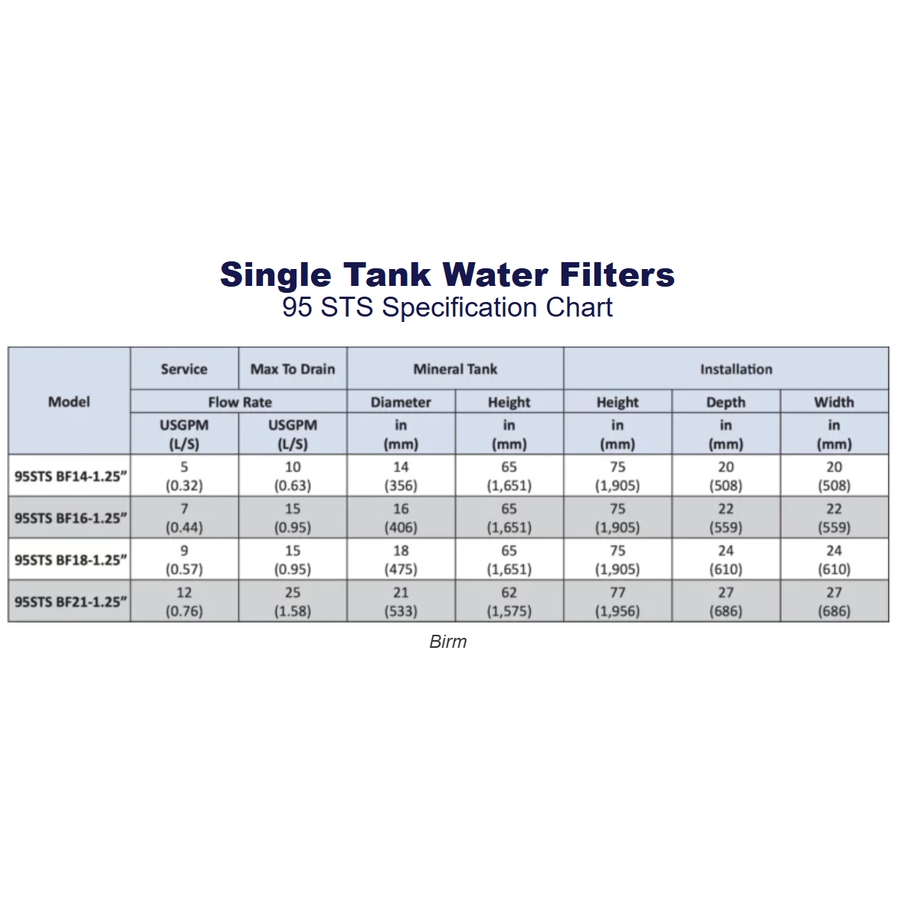

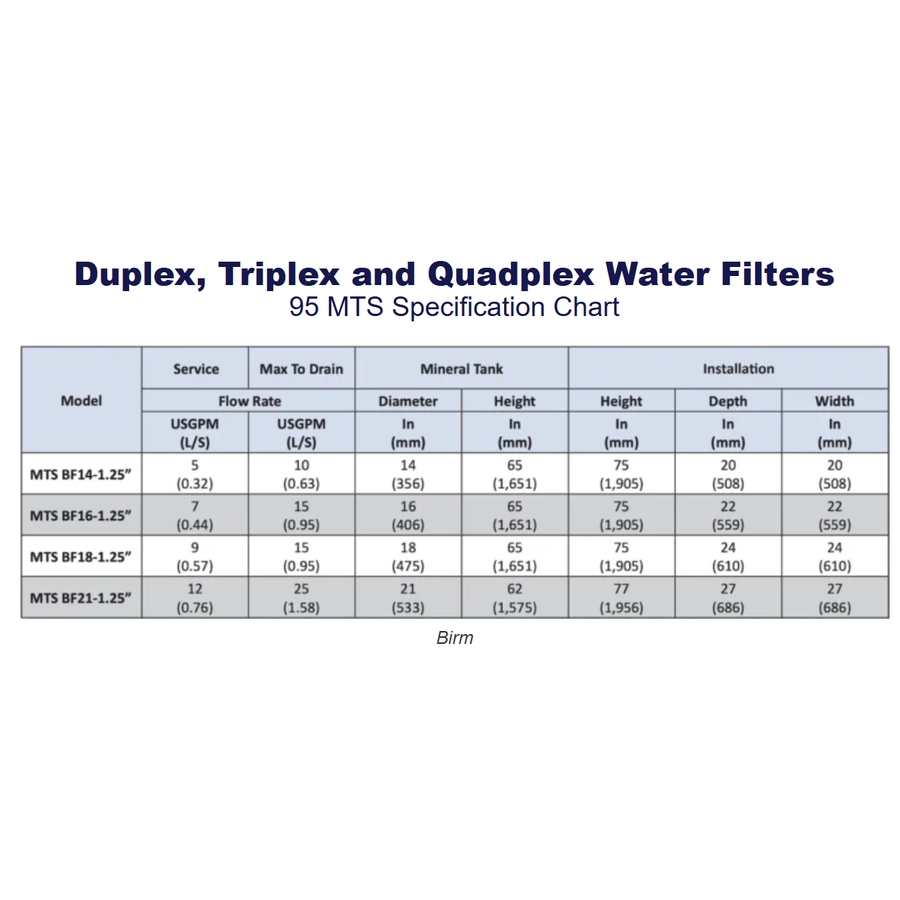

Birm Filters (BF): Reduce dissolved iron and manganese compounds. Birm media is not consumed in the iron removal operation resulting in a low attrition loss. It has a wide temperature performance range and extremely high removal efficiency. The media does not require chemicals for regeneration and only periodic backwashing is required.

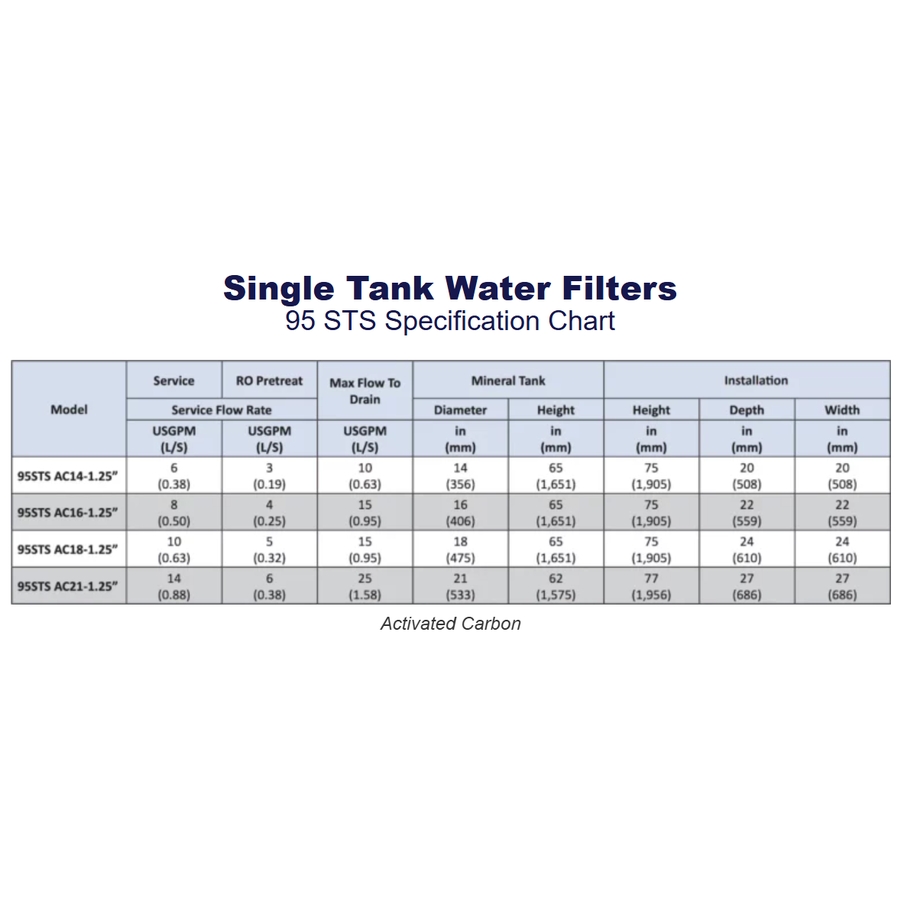

Activated Carbon Filters (AC): Reduce chlorine and chloramines from municipal and industrial water supplies. The media is manufactured from select grades of coconut shell coal to produce a high-density, durable granular product capable of withstanding the abrasion and dynamics associated with repeated hydraulic transport, backwashing and mechanical handling. The media has exceptionally high internal surface area with optimum pore size for the adsorption of a broad range of low molecular weight organic contaminants and oxidizing agents like chlorine, chloramine and ozone.

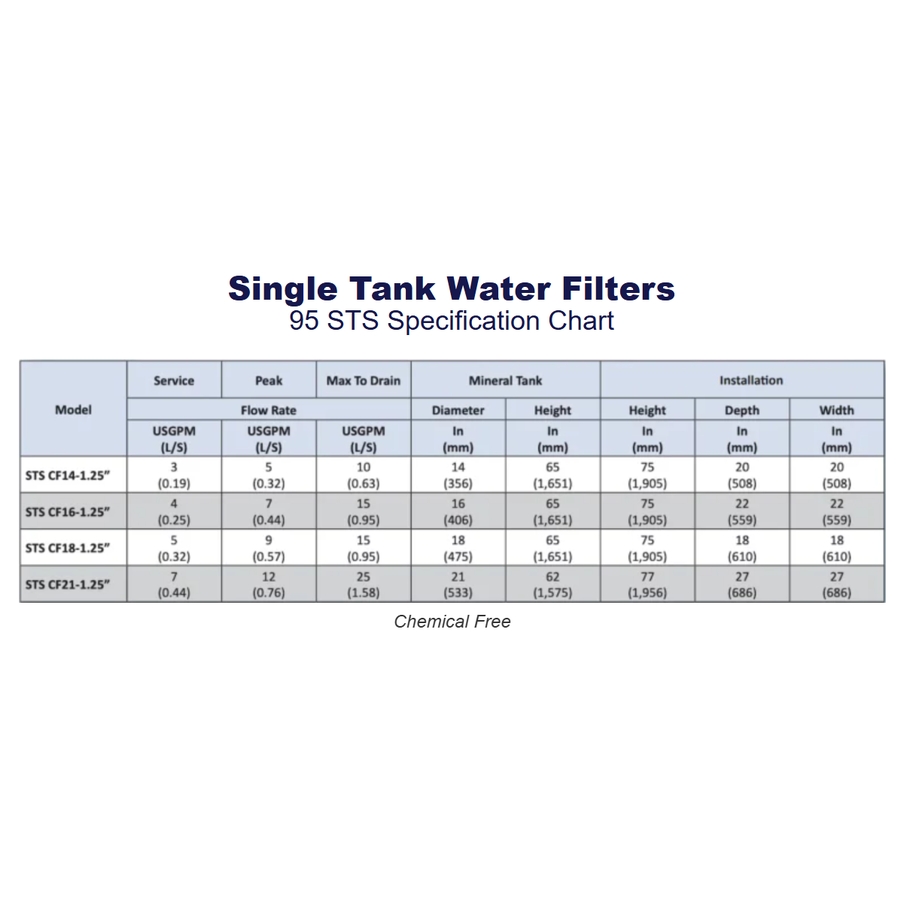

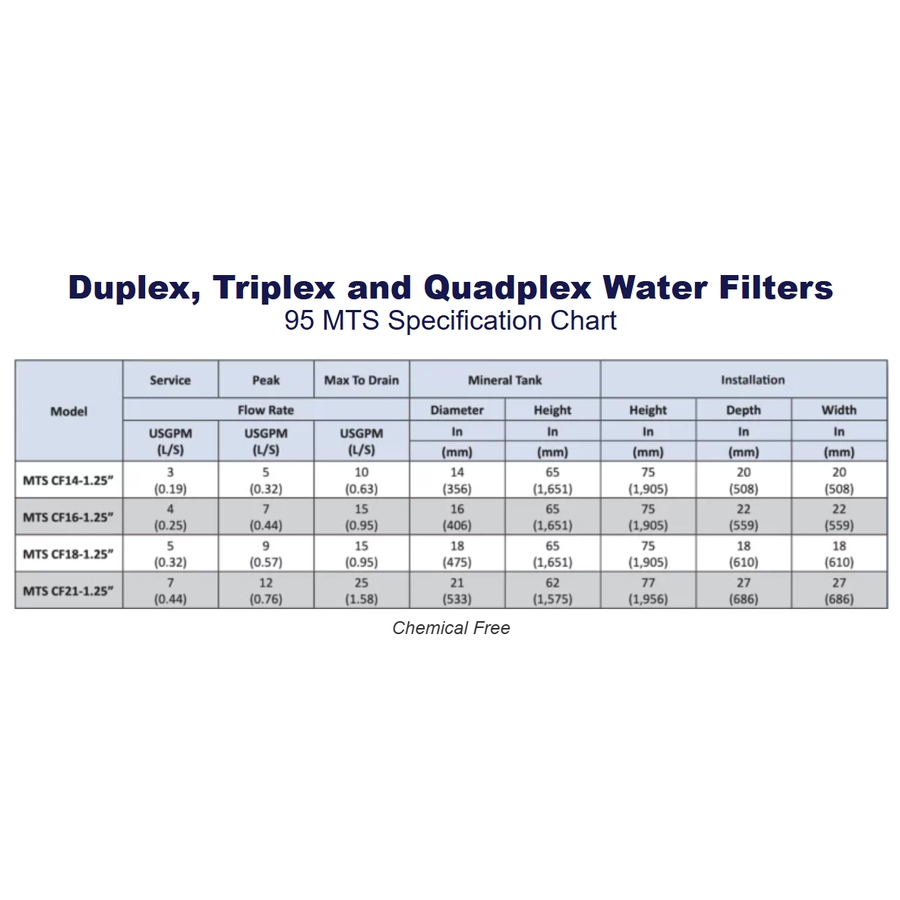

Chemical Free Filters (CF): Remove dissolved, precipitated and bacterial iron from water supply with no chemicals added to the water supply or the filter.

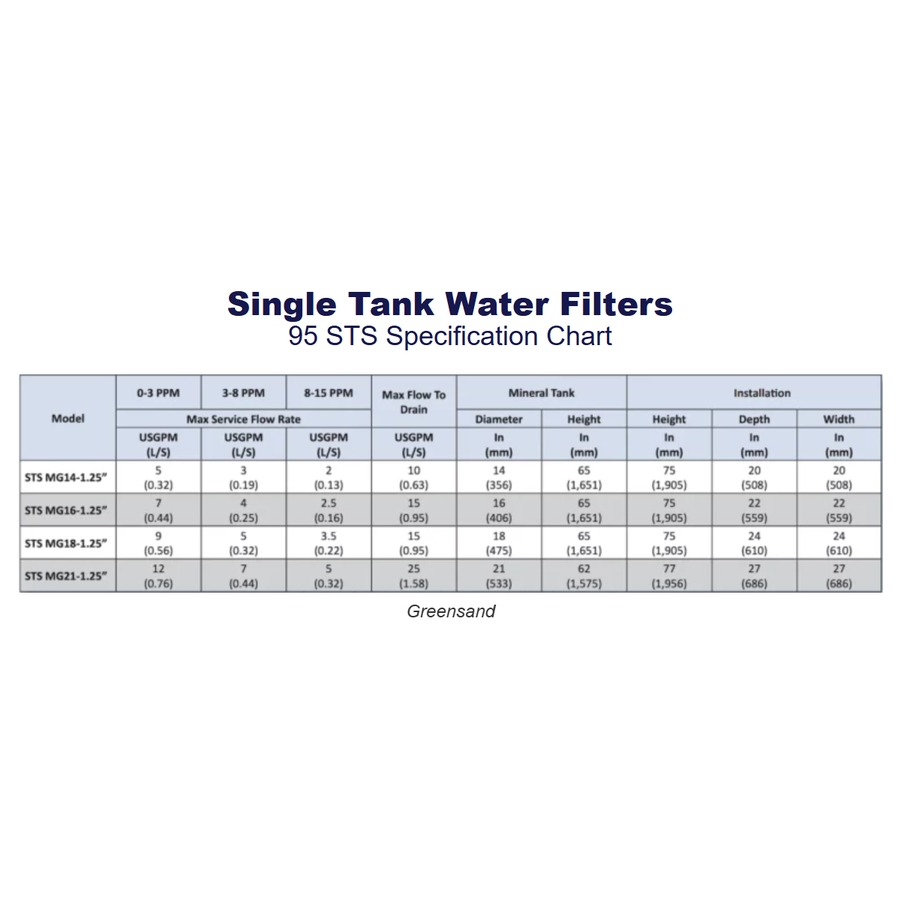

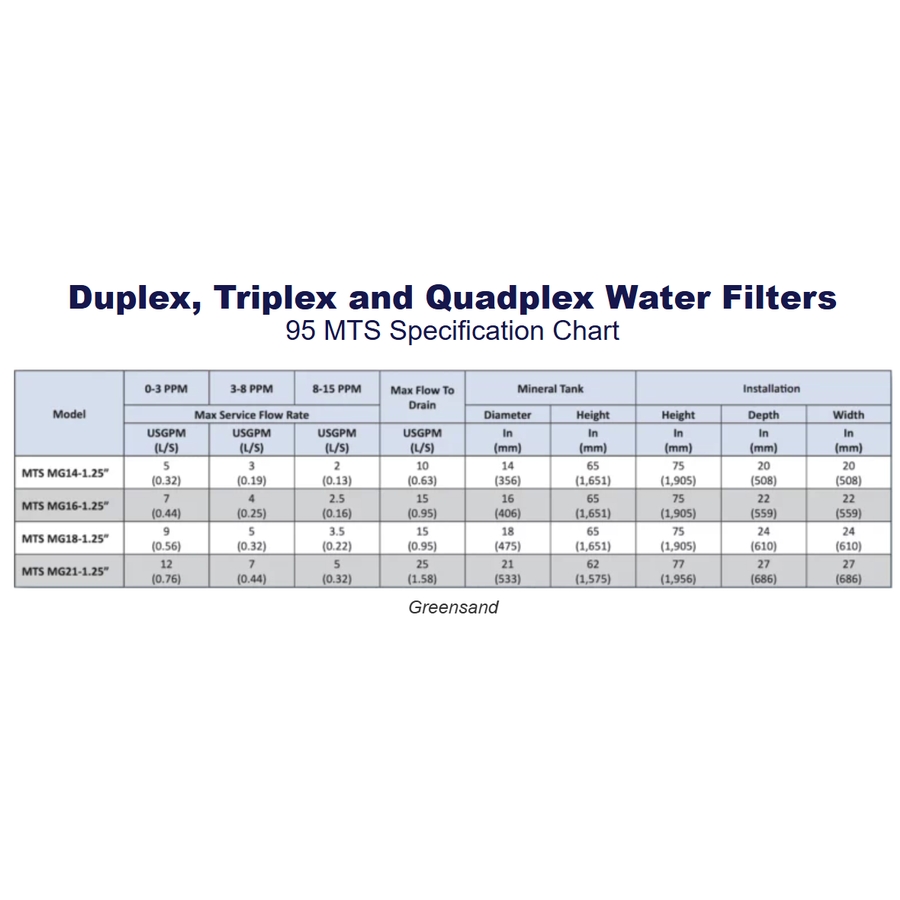

Greensand Filters (MG): For the oxidation and removal of iron, manganese, and hydrogen sulfide. Provides filtration level to 30 micron. Requires a potassium permanganate, chlorine, or other strong oxidant injection assembly to assist oxidative capacity of the filter media.

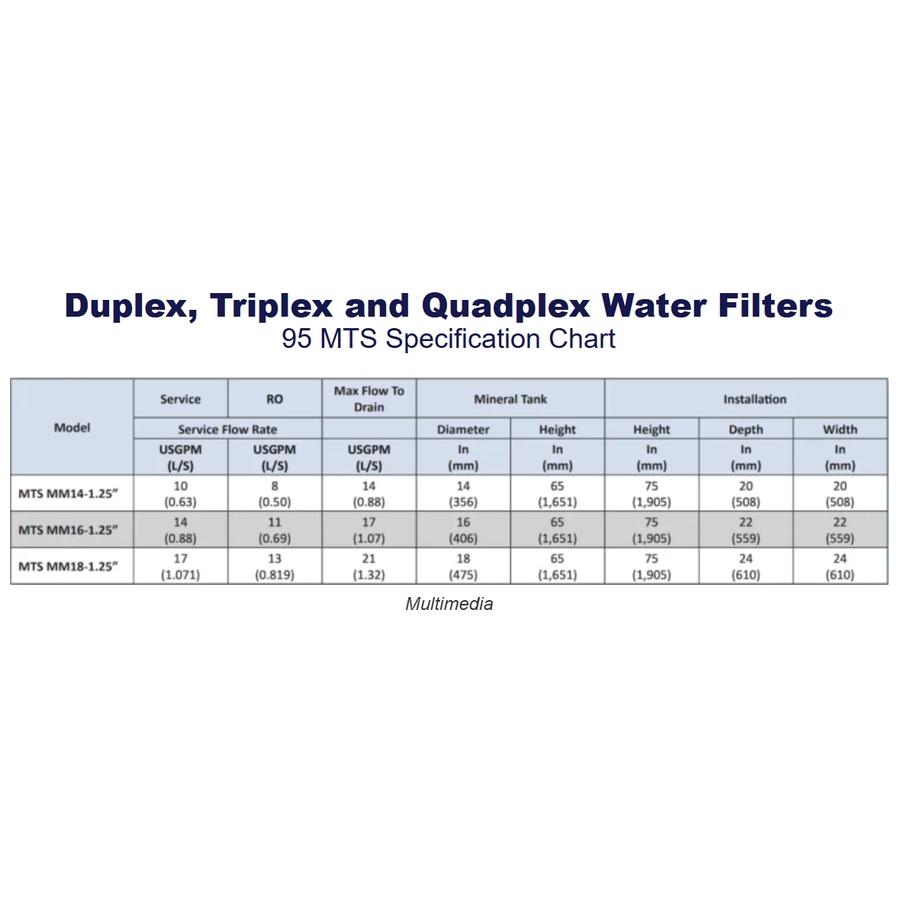

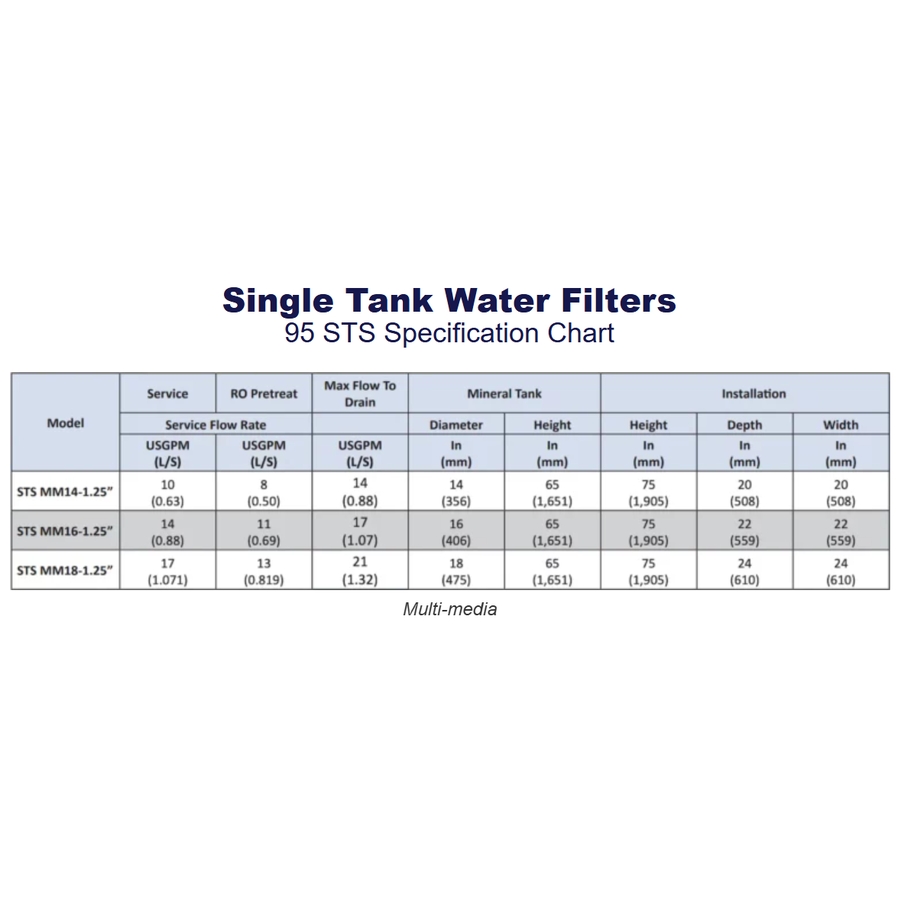

Multi-Media Filters (MM): For removal of sediment, dirt and other forms of suspended matter. Provides particle filtration down to 10 micron with increased service flow rate per square foot bed area over traditional sand media filters. Media has excellent chemical properties—high silica content and low soluble calcium, magnesium and iron compounds.

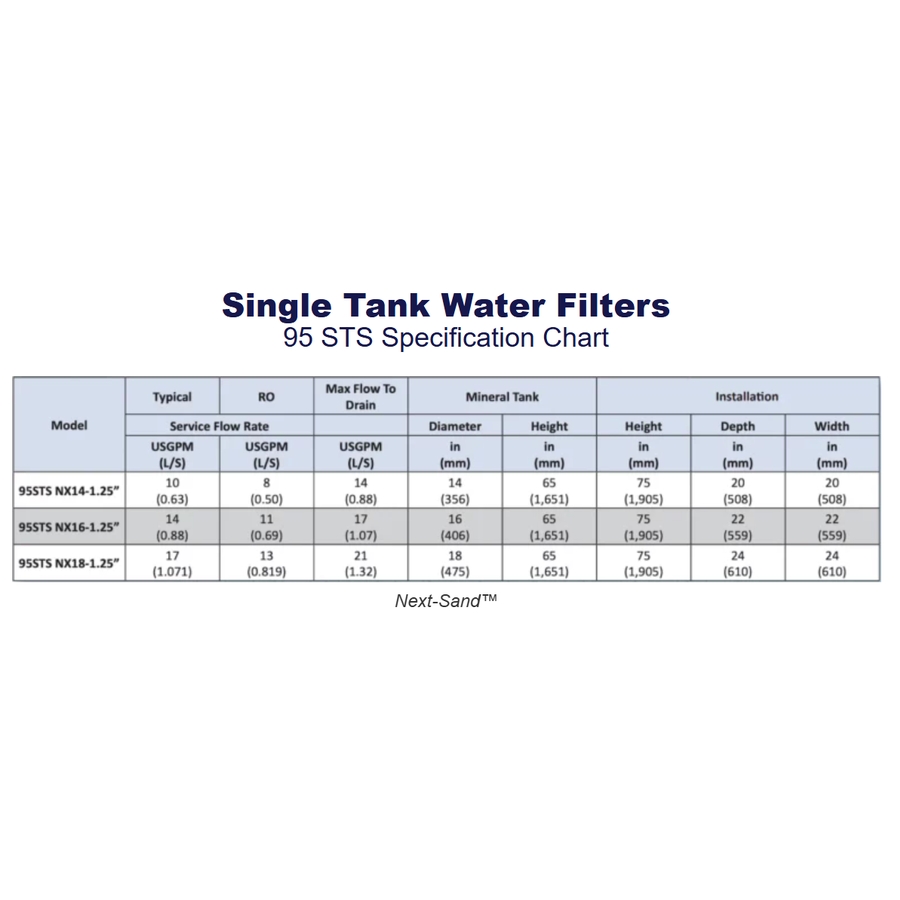

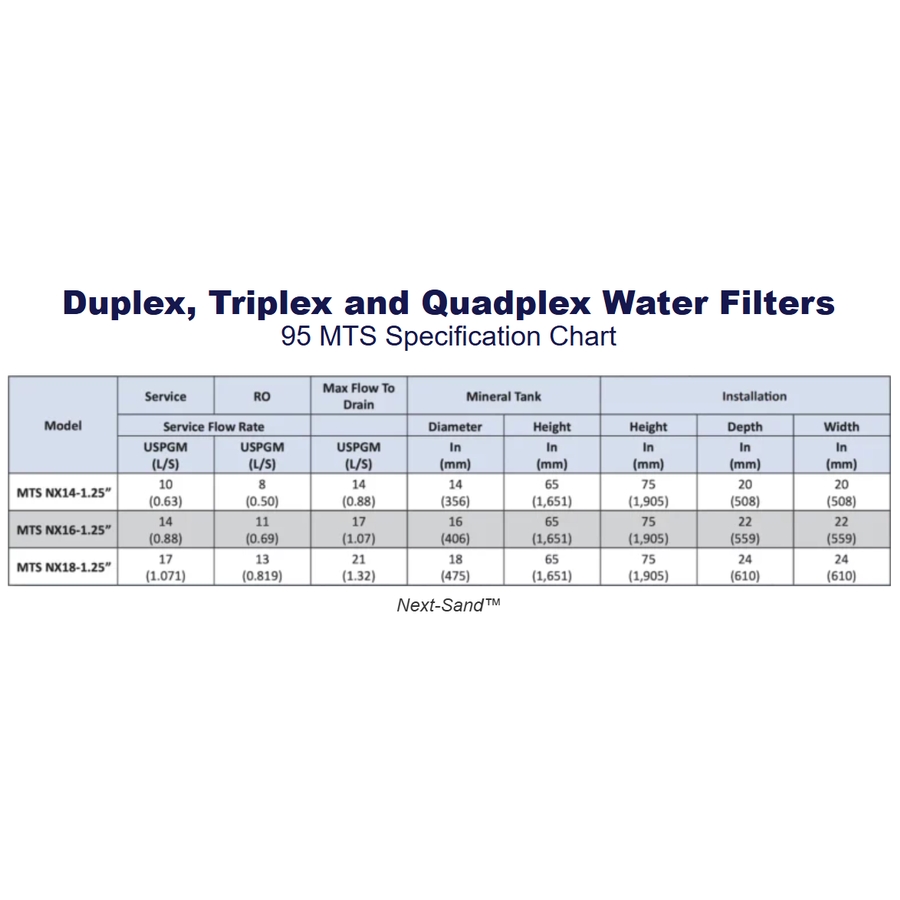

Next-Sand™ Filters (NX): Remove suspended solids, ferric hydroxide (red water iron) or sediment down to 5 microns. Next-Sand™ has proven extremely effective and will provide double the service flow rates of Multi-Media or Sand Filters.
Media Options: Birm, Activated Carbon, Chem-Free, Greensand, Multi-Media and Next-Sand™
Flexible Move-in and installation: Ideal for mechanical rooms with door openings that won’t fit a skid mounted water filtration system or that have limited floor space or ceiling height.
Advanced Diagnostic Information: Easily troubleshoot and access system information displayed in real-time on 95 Series Controller.
Unbeatable Product Expertise & Support: We design, manufacture and assemble every system, giving our team unparalleled expertise to support you for as long as you own your system.
- MTS Controller: Fully programmable remote mounted control box
- Parallel Flow: All tanks on-line and are interlocked so only one can backwashing at a time
- System Interlock: A signal from other equipment can be accepted to lock out and prevent the system from backwashing
- Advanced Diagnostic Information: Easily trouble shoot and access system information displayed in real time.
- Auxiliary Outputs: Up to two programmable outputs / relays can be added
- Battery Back-Up System: In the event of a power loss, the system can continue to meter and monitor water usage for up to 9 hours
- Optional: Treated water backwashing
- Operating pressure: 30-100 psi (206.8 - 861.8 kPa)
- Operating Temperature: 39 - 100° F (3.9 - 37.8°C) ?
- Electrical: Input 120V 60 Hz - Output 24VAC
- Control Valve: Plastic PPO (Noryl); NSF/ANSI 44 Certified for structural integrity, material quality, and lead-free safety
- Pressure (Tank): Corrosion resistant fibreglass reinforced polyethylene - NSF 44 Certified for Materials and Structural Integrity Requirements
- Internal Distributors
